Aluminum Repair Bay Enclosure Kit (12' x 24')

Complete 12' wide x 24' long Aluminum Repair Bay Enclosure Kit – Ready to Install

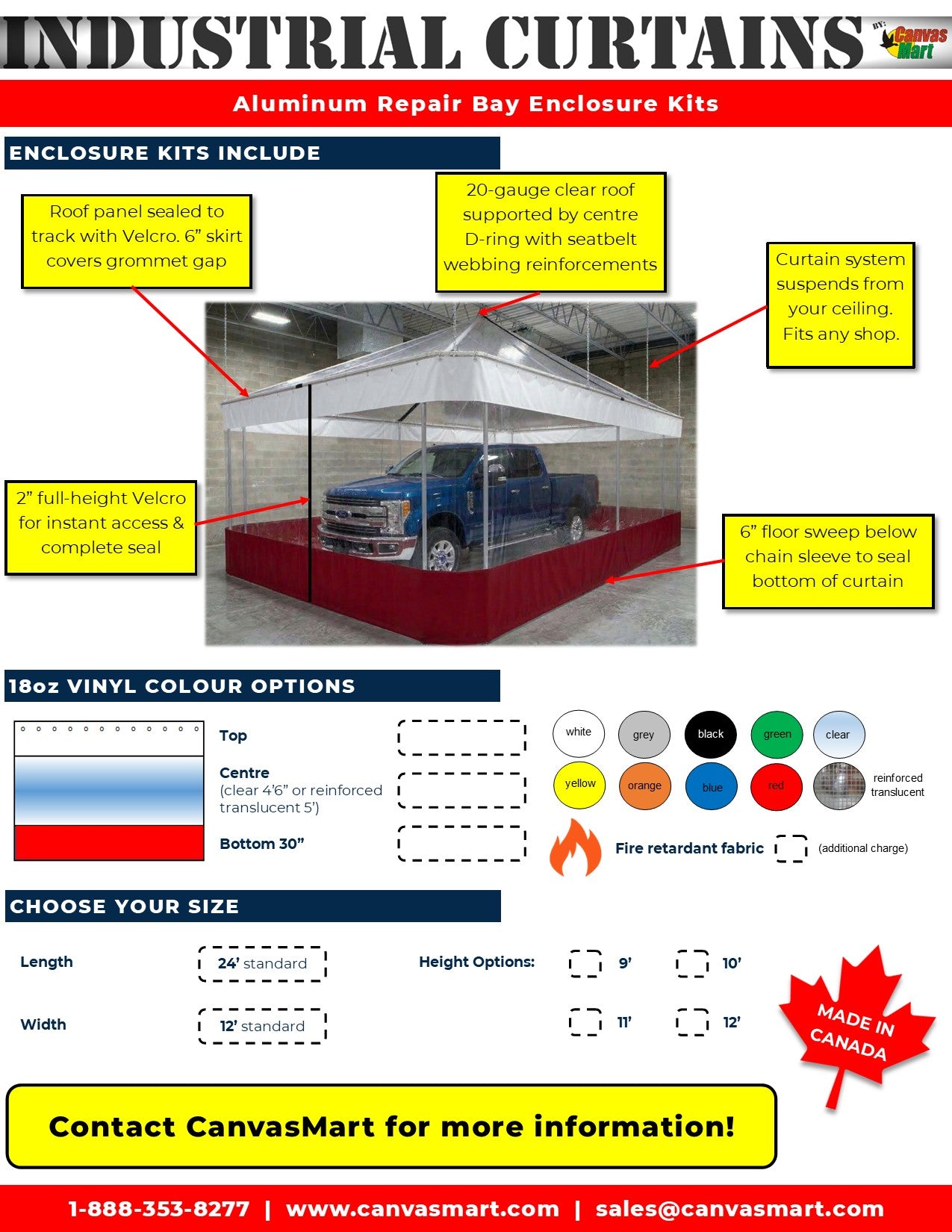

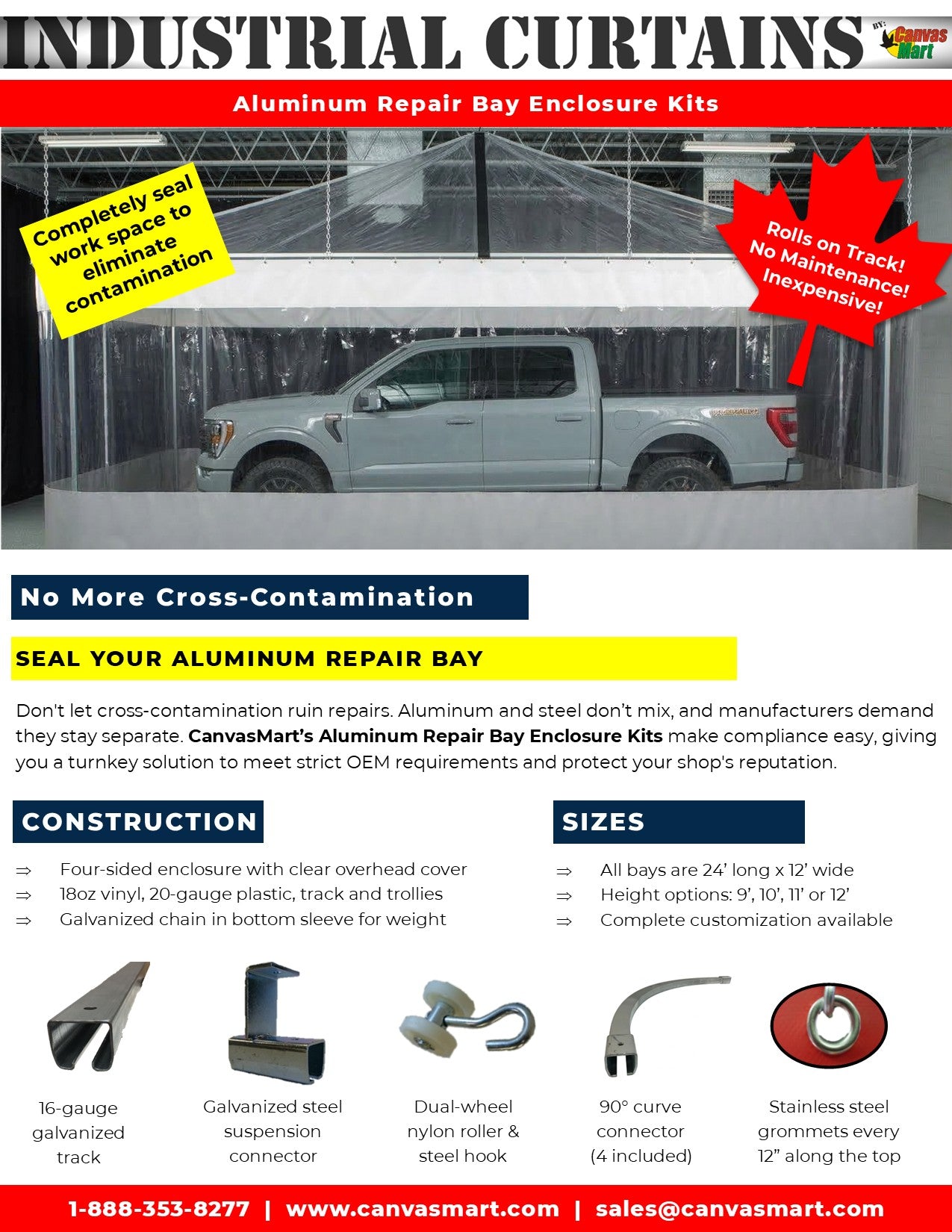

Download brochure here.

Don't let cross-contamination ruin repairs. Aluminum and steel don't mix, and automobile manufacturers demand they stay separate. CanvasMart's Aluminum Repair Bay Enclosure Kits - available in four heights and multiple colour ways - make compliance easy, giving your body shop a turnkey solution to meet strict OEM requirements and protect your shop's reputation.

Our industrial curtain kits provide a complete, heavy-duty solution for your facility. Designed for durability and visibility, each curtain is constructed with a rugged 18oz vinyl top and bottom, featuring a 54" high-visibility center window (20-gauge clear plastic) starting 30" from the floor mounted on a track with four 90° curves that allow the curtain to open in any configuration or even gather completely out of the way. The clear pyramid-shaped ceiling panel is made from 20-gauge clear plastic and suspends from your ceiling.

All-Inclusive Pricing Don't worry about sourcing extra parts. Our pricing includes the curtain and all necessary hardware:

- Track & Rollers: Smooth-gliding track system with end stops.

- Mounting Hardware: Mounts allow you to suspend the track system from your ceiling.

- Stability: A galvanized chain is sewn directly into the bottom hem to prevent billowing, while pneumatic stainless steel grommets are spaced every 12" along the top for secure hanging.

- Sealed: The pyramid-shaped clear ceiling Velcroes to the track and includes a 6" skirt to close the grommet gap between the track and the curtain. There is a 6" "floor sweep" of material that lays on the floor to close the bottom gap as well.

- Entrance: Every system has a full-height Velcro opening on the front and the back centred on the 12' ends.

Curtains are manufactured from Heavy-Duty 18oz Vinyl with a 4'6" 20gge Clear Plastic Window (or no-charge upgrade to 5' Reinforced Translucent Window) and features limited thread. Unlike traditional curtains, we heat-weld every seam, pocket and even the window onto the vinyl. This eliminates the needle holes that cause leaks and the thread rot that leads to mold and mildew. With standard top and bottom rod pockets, competitive pricing, and a wide variety of colors, these are the last curtains you’ll need to buy for a long time. Webbing is stitched onto the roof panel to reinforce the centre hanging point and distribute the weight across the fabric to ensure years of trouble-free ownership.

These curtains feature a 4'6" clear window 30" up from the bottom. A no-charge upgrade to a 5' panel of reinforced translucent PVC is available). These windows allow light through your bays and can prevent a feeling of claustrophobia in your bays if you have a low-light environment.

Many customization options available (including CAN-ULC/S109 Fire Retardant fabric) - please contact us for assistance!
